Durable MP Crusher Parts Alternatives for High-Tonnage Mining Applications

MP cone crushers, originally developed by Metso™, are designed for high-throughput, high-pressure operations in large-scale mining. These machines are especially common in tough environments like Australian iron ore or copper mines, where 24/7 crushing under heavy loads is the norm.

This extreme working condition means one thing: not every part can survive it.

Unique MP Replacement

Why Replacement for MP Crusher Parts Require a Different Standard

Because of their massive structural load and deep chamber design, MP crushers place unique demands on their components:

  • Castings must be thicker and cleaner, to avoid stress fractures under load.

  • Wear zones like mantles and liners must use high-grade manganese(Mn18Cr2, Mn22Cr2) or TIC inserts to prevent early failure.

  • Dimensional accuracy is critical, especially for head, shaft, and socket assemblies.

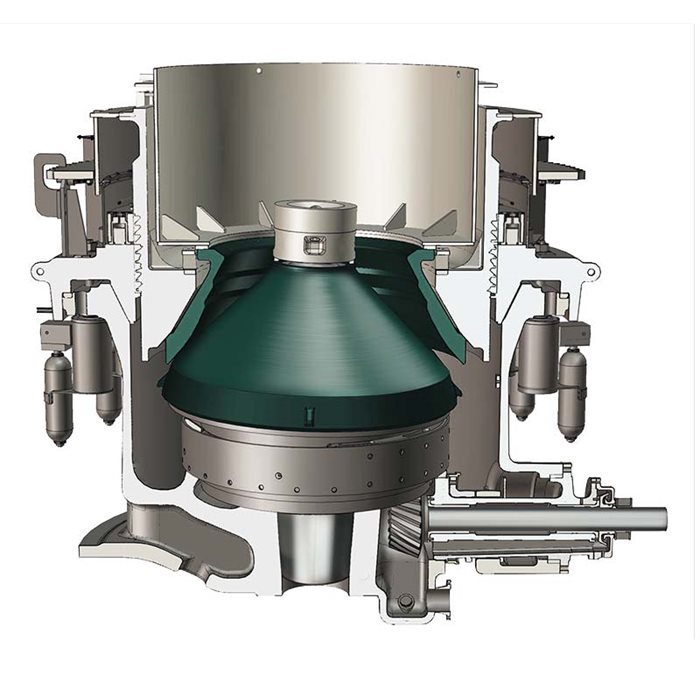

concave mantel cone crusher parts
HOW WE HELP

What We Deliver at PAJOA

We understand these challenges and supply MP crusher parts designed to meet them. Every component is:

  • Reverse-engineered or pattern-controlled based on original specifications.

  • Produced with mining-grade alloy formulations tailored for impact and abrasion.

  • Inspected and tested for dimensional and metallurgical integrity.

Whether you're dealing with hard granite or abrasive iron ore, we help you minimize downtime and keep your throughput stable.

Get A Quote For Your Parts

About Metso Cone Crushers

Metso cone crushers are trusted worldwide for their efficiency, high capacity, and advanced automation. The HP Series is the most popular, delivering consistent cubic output and excellent end-product shape. The GP Series excels in secondary applications with its steep cavity design, while the MP Series is built for high-capacity tertiary and quaternary crushing in mining operations. Mobile users rely on the Lokotrack® / NW Rapid Series, which combines flexibility with proven cone modules.

For all of these series, PAJOA brings deep expertise as a crusher parts manufacturer focused on the international aftermarket. We make it effortless for you to get the right parts — with quality that satisfies.

Already Know Your Part Number?

Note: * Metso® is registered trademarks of Metso Corporation. Pajoa has no affiliation with Metso Corporation. Our replacement parts are manufactured as high-quality alternatives for aftermarket use.

Check by Part Book to Define Your Parts of MP Crushers

ModelPart No.Description
Metso MP8001022819351 Adjustment Cap
Metso MP8001026187502 Feed Cone
Metso MP8001027476797 Cover
Metso MP8001028563351 Cylinder
Metso MP8001028564004 Cylinder
Metso MP8001037117225 Pinion
Metso MP8001037711892 Cylinder Head
Metso MP8001038000901 Shield
Metso MP8001038018176 CounterWeight Guard
Metso MP8001038018751 Guard, Stationary
Metso MP8001038060005 Arm Guard
Metso MP8001038069630 Box Guard
Metso MP8001042472702 Head
Metso MP8001042622051 Cylinder Head
Metso MP8001044180391 Hopper Assembly
Metso MP8001045376436 Countershaft Box
Metso MP8001046861003 Drive Shaft Assembly
Metso MP8001047013367 Countershaft Key
Metso MP8001048517582 Seat Liner Segment
Metso MP8001048517583 Seat Liner
Metso MP8001048519601 Main Frame Liner
Metso MP8001050058002 Manifold
Metso MP8001050058004 Manifold
Metso MP12501022070708 Countershaft Box Bushing
Metso MP12501022075736 Eccentric Bushing
Metso MP1250MM0436930Bowl Liner Sh M (Intermediate) Xt710
Metso MP1250MM1526485Mantle Low Sh M/C/Ec Xt710
Metso MP25001079143403 Accumulator
Metso MP25001086041469 Head Bushing Washer, M20
Metso MP2500MM0335243Lower Main Frame, Machining
Metso MP2500MM0335245Head, Machining
Metso MP2500MM0335247Adjustment Ring 9 Machining
Metso MP2500MM0349412Socket Assembly
Metso MP2500MM0349413Socket Sub-Assembly
Metso MP2500MM0349418Socket Liner
Metso MP2500MM0349479Head Assembly
Metso MP2500MM0349480Head Ball
Metso MP2500MM0349482Lower Head Bush I Ng
Metso MP2500MM0349485Torch Ring
Metso MP2500MM0349487Oil Deflector
Metso MP2500MM0349491Feed Plate Assembly
Metso MP2500MM0349855Narrow Arm Guard Liner
Metso MP2500MM0349856Wide Arm Guard Liner
Metso MP2500MM0349857Fulcrum Bar Segment
Metso MP2500MM0349860Lower Thrust Bearing
Metso MP2500MM0349861Main Frame Liner
Metso MP2500MM0349862Stationary Shield
Metso MP2500MM0349872Main Frame Pin Bushing
Metso MP2500MM0349876Shim Set 3.0Mm
Metso MP2500MM0349881Oil Deflector
Metso MP2500MM0349897Dust Shell
Metso MP2500MM0349899Main Frame Pin
Metso MP2500MM0350029Tramp Release Assembly
Metso MP2500MM0350181Countershaft Box Bushing
Metso MP2500MM0350190Oil Flinger
Metso MP2500MM0350199Cover
Metso MP2500MM0350928Pinion Adjusting Block
Metso MP2500MM0351445Eccentric Sub-Assembly
Metso MP2500MM0352038Main Frame Liner - Narrow Arm
Metso MP2500MM0399550Feed Plate
Metso MP2500MM0400178Socket
Metso MP2500MM0402389Main Frame Seat Liner Set
Metso MP2500MM0402603Lifting Eyebolt
Metso MP2500MM0403337Bowl Adapter Ring
Metso MP2500MM0403340Bowl Sub-Assembly
Metso MP2500MM0403341Bowl Assembly
Metso MP2500MM0403876Locking Nut Assembly
Metso MP2500MM0404547Stud Bolt Assembly
Metso MP2500MM0406284Release Cylinder & Manifolds Assembly
Metso MP2500NONAMECountershaft

Why Choose PAJOA for Metso MP Cone Replacement Crusher Parts?

When sourcing replacement parts for Metso cone crushers, buyers not only look for compatibility but also a reliable partner who can guarantee performance, certification, and timely delivery. At PAJOA, we combine global standards with local expertise to deliver parts that fit, perform, and last.
ISO / ASTM / EN / JIS Certified

Manufacturing aligned with international and national quality standards.

10+ Leading Foundries in China

Direct access to China’s top crusher parts factories for quality and supply reliability.

Up to 14 Tons, 1.5× Wear Life

Custom-engineered parts for extreme durability and high-volume needs.

One Supplier. One Container.

All crusher types, all major brands — spares and wears in one-stop sourcing convenience.

Get in touch

Bulk Buying? All Your Metso Crusher Replacement Parts — One Supplier, One Shipment.

Contact Us

FAQs about Metso Cone Crusher Parts Alternatives from Pajoa

Q: Do you supply genuine Metso parts?

A: No, we manufacture high-quality replacement parts compatible with Metso crushers.

We are not affiliated with Metso in any commercial way. Our components are engineered to match the dimensions and performance of original Metso parts.



Q: Are your cone crusher parts compatible with Metso HP/GP/MP models?

A: Yes, all parts are engineered for direct fit with Metso crushers, with optional material upgrades available.

Q: Can you help identify a specific part for my Metso model?

A: Absolutely. Please share your part number, drawing, or photo, and our technical team will assist you promptly. Additionally, we provide guidance for customers to define the parts they wish to purchase accurately.
