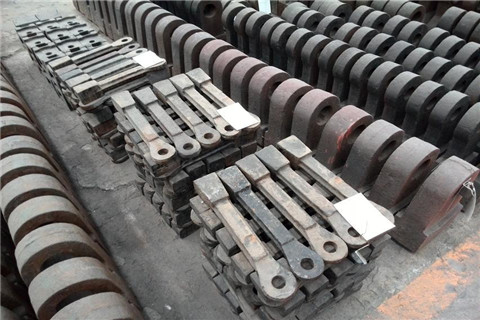

Hammer Heads for Crushers – Ceramic & Alloy Solutions

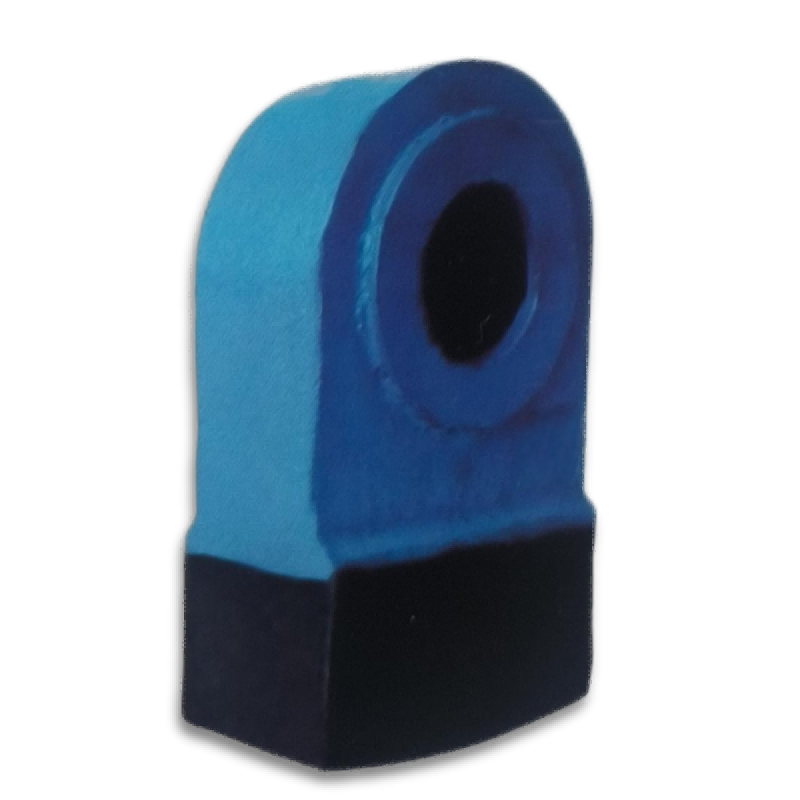

Start with the Core: Ultra-High Chromium Composite Hammer

The foundation of Pajoa’s crusher hammer technology lies in our Ultra-High Chromium Composite Hammer — engineered for extreme abrasion environments. This hammer features a monolithic structure made from ultra-high chromium white iron, offering outstanding hardness (HRC 60–65) and exceptional wear resistance on the striking surface.

Ideal for fine crushing applications such as manufactured sand or granite, it sets the standard for durability where low impurity content and high silica input are involved.

Material Type: River pebbles, granite, manufactured sand
Abrasiveness & Feed Size: Very high abrasiveness; small to medium-sized feed
Impurity Tolerance: Low; best used in clean working conditions

Enhanced Solution 1: Ultra-High Chromium Composite Hammer with Ceramic Alloy Particle Insert

To further improve wear life, we embed ceramic alloy particles into the impact face of the ultra-high chromium base. These fine particles create a hard-facing effect across the entire contact area, significantly reducing erosion and edge wear over extended operation.

Application Upgrade: Especially suited for high-speed sand-making lines
Key Benefit: Full-face ceramic reinforcement extends the striking zone’s lifespan

Impurity Tolerance: Still optimal for clean, silica-rich input

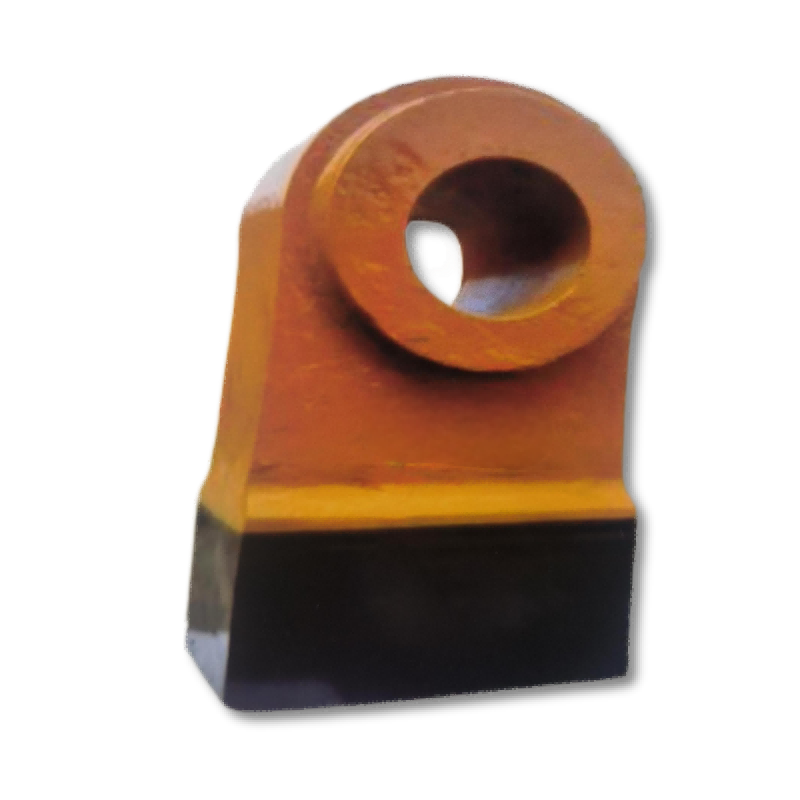

Ultra-High Chromium Composite Hammer with Ceramic Alloy Particle Insert

Enhanced Solution 2: High Manganese Steel Hammer with Ceramic Alloy Rod Insert

For tougher impact environments and larger feed sizes, we offer a patented design using Mn18Cr2 high manganese steel—valued for its excellent toughness—and insert ceramic alloy rods into the high-wear zones. This hybrid construction combines fracture resistance with long wear life, even under dynamic and unpredictable loading.

Material Type: Slag, demolition debris, construction waste, high-silica rock
Abrasiveness & Feed Size: High; medium to large feed
Impurity Tolerance: Medium; tolerates occasional metal or concrete scrap
Key Benefit:Dual toughness and surface hardening in one

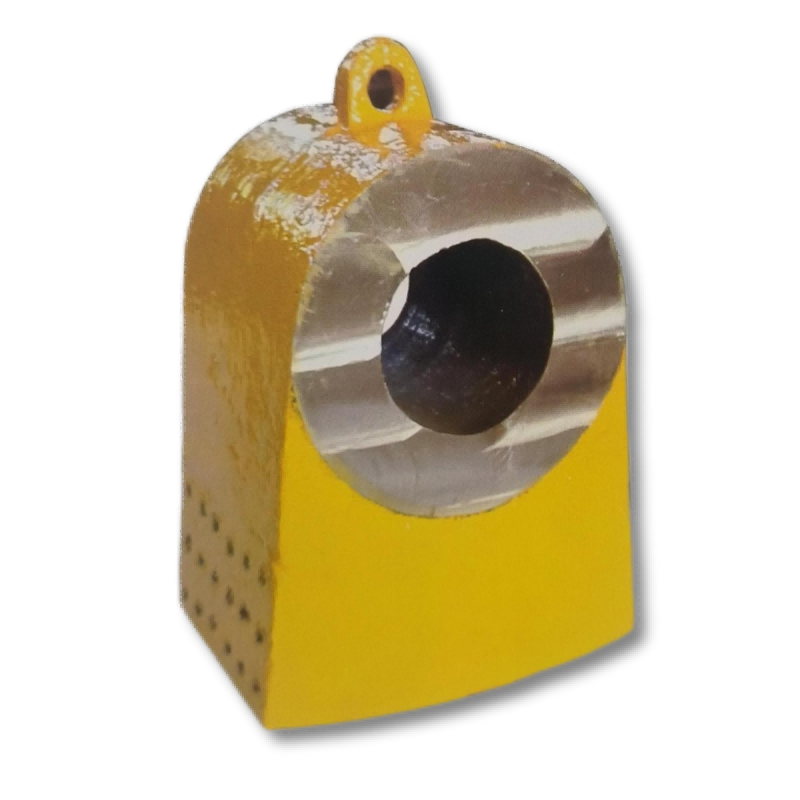

High Manganese Steel Hammer with Ceramic Alloy Rod Insert

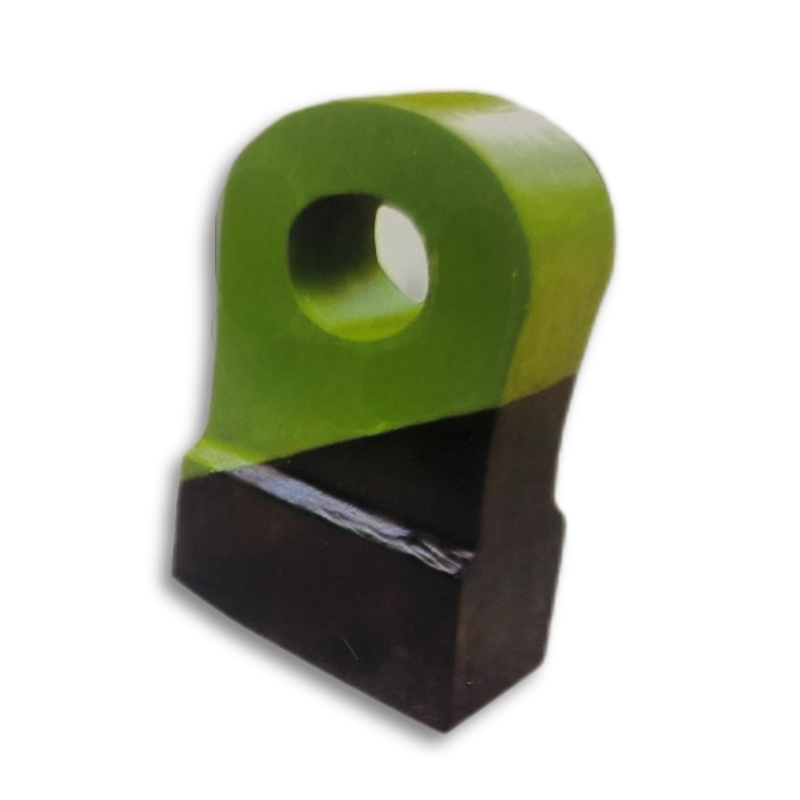

Enhanced Solution 3: Bevel Edge Ultra-High Chromium Hammer

For users dealing with frequent shank failures or edge deformation, this structural upgrade introduces a single-sided bevel casting design. The ultra-high chromium working edge maintains hardness, while the bevel shape helps reduce stress concentration on the shank—prolonging the hammer’s structural integrity.

Material Type: Limestone, cement clinker
Abrasiveness & Feed Size: Medium; small to medium feed
Impurity Tolerance: Low to moderate
Key Benefit:S hank-protecting structure + hard edge performance

Pajoa’s Standard Solutions for General Crushing

When extreme solutions aren't necessary, we also provide proven wear parts in classic materials:

High Manganese Steel Hammers
Martensitic Steel Hammers
High Chrome Steel Hammers

These are reliable, cost-efficient choices for moderate impact and abrasive conditions.

Need Hammer Heads Tailored to Your Specific Needs?

Standard parts don’t always fit perfectly — that’s why we offer customized solutions for crusher wear parts designed to match your machine, material, and working conditions.

We can manufacture crusher wear parts up to 14 tons to meet the demands of heavy-duty crushing.

Get Custom Hammer Crusher Wear Parts
