Nordberg HP Crusher Replacement Parts – Perfect Fit | Quality Beyond

PAJOA provides a complete line of aftermarket replacement parts for Metso® HP cone crushers, delivering reliable OEM-fit alternatives from trusted Chinese foundries.

Available HP models: HP3, HP4, HP5, HP6, HP100, HP200, HP300, HP400, HP500, HP800

HOW WE HELP

Not All HP Crusher Replacements Are Created Equal

The reality is that the quality of HP crusher alternative parts on the market varies dramatically. From inconsistent metallurgy to poor dimensional tolerances, many so-called replacements fail to meet real-world demands.

At PAJOA, we cut through the noise. We deliver high-performance HP part alternatives that are precision-engineered, material-optimized, and fit-tested—so your machine performs the way it was designed to.

HP Replacement Wear Parts and Spares We Supply

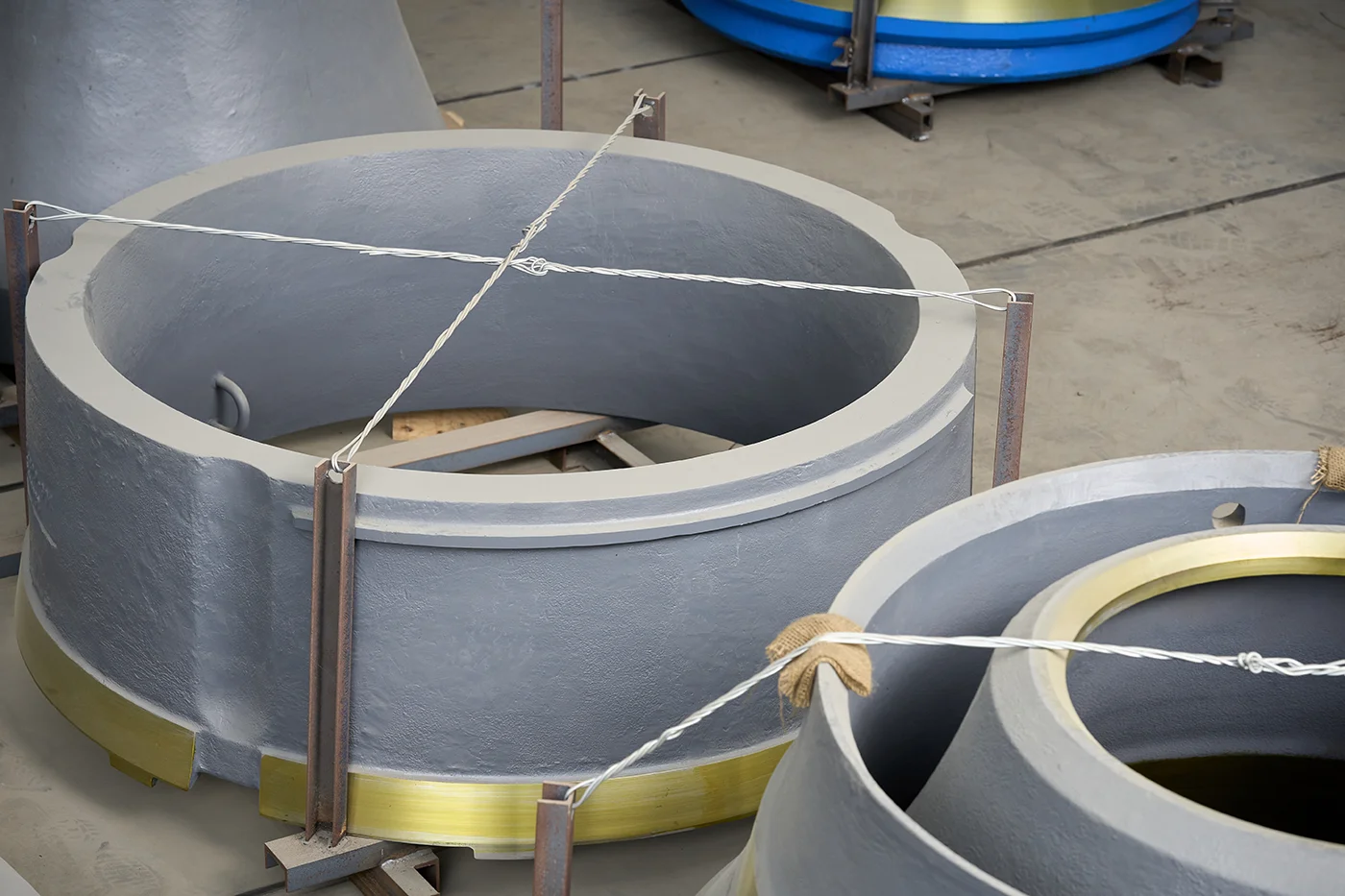

  • Wear parts: mantles, concaves (bowl liners), cutting rings, feed cones, torch rings

  • Spare parts: main shafts, adjustment rings, frames, eccentric bushings, socket liners, head nuts, seals, hydraulic units, and more

Available in Mn18Cr2 / Mn22Cr2, with TIC-insert and ceramic-reinforced upgrades, our Metso cone crusher parts deliver up to 1.5× longer wear life compared with OEM under equivalent conditions.

Get A Quote For Your Parts

About Metso Cone Crushers

Metso cone crushers are trusted worldwide for their efficiency, high capacity, and advanced automation. The HP Series is the most popular, delivering consistent cubic output and excellent end-product shape. The GP Series excels in secondary applications with its steep cavity design, while the MP Series is built for high-capacity tertiary and quaternary crushing in mining operations. Mobile users rely on the Lokotrack® / NW Rapid Series, which combines flexibility with proven cone modules.

For all of these series, PAJOA brings deep expertise as a crusher parts manufacturer focused on the international aftermarket. We make it effortless for you to get the right parts — with quality that satisfies.

Already Know Your Part Number?

Go straight to our P/N search and find the exact hp replacement parts you need.
Note: * Metso® is registered trademarks of Metso Corporation. Pajoa has no affiliation with Metso Corporation. Our replacement parts are manufactured as high-quality alternatives for aftermarket use.

Check by Part Book to Define Your Parts of HP Crushers

ModelPart No.DescriptionRemark
HP3001022814802 Adjustment Cap335.8
HP3001001699045 Directional Valve654011-DO3-115DF10
HP3001001699046 Directional Valve6553-DO3-115/DF10
HP3001002076431 AdapterGF1010-0408S
HP3001003063296 Square Nut10-ACIER-NFE25540-UNPLATED
HP3001003086066 Washer Lock RibbedBN792-M10-MECHANICAL
HP3001003396060 Spring PinISO8750-12X24-ST
HP3001003801503 Grease Fitting/
HP3001012362975 Support/
HP3001013301442 Flat Bar/
HP3001019578065 Square Head BoltM30.80/75
HP3001022063300 countershaft Bushing/
HP3001022073307 Inner Eccentric Bushing/
HP3001022130525 Bushing/
HP3001022145801 Upper Head Bushing/
HP3001022145975 Upper Head Bushing/
HP3001022815005 Adjustment Cap/
HP3001036833868 Pinion/
HP3001036833869 Drive Gear/
HP3001037711893 Piston Head/
HP3001038018155 Cntrwght Liner/
HP3001038062922 Arm Guard/
HP3001044180281 Feed Hopper Low/
HP3001047098031 Shaft Key/
HP3001048514410 Frame Seat Liner/
HP3001048722782 Socket Liner/
HP3001050214187 Electric Motor5HP/1500RPM/184T FRM/415V
HP3001050214635 Elctrc Motor10HP/1750RPM/CM-3313T/230-
HP3001050230065 Hydr Motor/
HP3001051495225 Nut SphericalHM72
HP3001054268497 Axle/
HP3001054350025 Main Frame Pin/
HP3001055981151 Feed Cone/
HP3001056839413 Nut-LockU C/PL.48
HP3001057602250 Thrust Brng Low/
HP3001057612200 Thrust Brng Upr/
HP3001059423011 Oil PumpP/N PF-2012-2801
HP3001061030431 Planetary Drive/
HP3001061340015 Support/
HP3001061871854 Adjstm Ring/
HP3001061873757 Clamping Ring/
HP3001062440045 Drive Gear/
HP3001062807491 Oil Flinger/
HP3001063192845 Wear Ring/
HP3001063518725 Seal Ring/
HP3001063519182 Seal/
HP3001063914652 Torch Ring/
HP3001063917418 Bowl Adapter Ring/
HP3001064666515 Rotection Plate/
HP40066664404 Bowl Liner Std C
HP40066664405 Bowl Liner Std C
HP40066664406 Bowl Liner Std Xc
HP40066664409 Bow Liner Std Xc
HP4001001504357 Bshg, Outside Head, 2.000X1.500″Npt-Cl15
HP4001001958050 Equal Tee 8R6X-S
HP4001002080430 Elbow, 2062-4-4S
HP4001002080450 Elbow, 8 C5Ox-S
HP4001002098750 Plug, 900598-8S
HP4001003063291 Nut-Lock M8 Bolt, A=19, B=33, C=11, D=1
HP4001003801990 Grease Fitting Cap .188 Idx.375 Odx.375
HP4001005416095 Ext. Retain. Ring Asmeb18.27.1-Na1-375,
HP4001007095250 Snubber 25-1106B
HP4001007249890 V-Ring Seal Twva01800-N6T50
HP4001017557051 V-Belt Set 8V / 190 Matched Set Of 10
HP4001019559606 Bolt Lock
HP4001019579055 Screw Square Head M36X125/90
HP4001019579056 Screw Square Head M36X150/90
HP4001019579057 Screw Square Head M36X180/90
HP4001020053002 Bowl
HP4001021347700 Bracket Assembly
HP4001021440875 Bracket
HP4001022062210 countershaft Bushing
HP4001022074069 Eccentric Bushing
HP4001022133692 Bushing For External Main Frame Pins, S
HP4001022147349 Upper Head Bushing
HP4001022147350 Lower Head Bushing,
HP4001022815026 Adjstm Cap
HP4001024709137 Tube
HP4001031136180 Eccentric
HP4001033781830 Main Frame
HP4001035715064 O-Ring
HP4001036831195 Pinion
HP4001038018156 Cntrwght Liner
HP4001038067401 Arm Guard
HP4001044180249 Hopper Upr
HP4001044180343 Hopper Low
HP4001044252539 Hose Assy 3/8″ L=840
HP4001044252606 Hose Assy 3/8″ L=1825
HP4001045376018 countershaft Box
HP4001048300031 Bowl Liner Sh C
HP4001048300032 Bowl Liner Sh M
HP4001048300035 Bowl Liner Sh M
HP4001048300039 Bowl Liner Sh C
HP4001048300043 Bowl Liner Sh Ef
HP4001050214580 Electric Motor 7.5Hp/1500Rpm/213T Frm/22
HP4001054350830 Pin
HP4001055981158 Feed Plate
HP4001056839401 Nut Lock
HP4001057605158 Head Ball
HP5001001504357 Bshg, Outside Head, 2.000X1.500″Npt-Cl15
HP5001002809193 Screw, Slotted Cheese Head
HP5001014920021 Isolation Frame
HP5001017557047 V•Belt Set
HP5001019559607 Locking Bolt
HP5001019578985 Screw, Square Head
HP5001022065500 / 10 2206 5500Bushing
HP5001022074809 Eccentric Bushing
HP5001022139802 Bushing
HP5001022147321 / 10 2214 7321Upper Head Bushing
HP5001028563422 Cylinder Tube
HP5001031143420 Eccentric
HP5001033785560 Main Frame
HP5001036831527 Pinion
HP5001036831535 Gear
HP5001037711921 Piston Head
HP5001038067481 Countershaft Box Guard
HP5001038067482 Countershaft Box Guard
HP5001038069595 Arm Guard
HP5001044180284 Hopper, Lower
HP5001045376019 Countershaft Box
HP5001048314219 / 10 4831 4219Bowl Liner Medium,Sh
HP5001048314222 / 10 4831 4222Bowl Liner
HP5001048314227 / 10 4831 4227Bowl Liner Medium,Std
HP5001048314236 / 10 4831 4236Bowl Liner
HP5001048314240 / 10 4831 4240Bowl Liner Extra Coarse,Std
HP5001048314241 / 10 4831 4241Bowl Liner Coarse,Sh
HP5001048314242 / 10 4831 4242Bowl Liner Medium,Sh
HP5001048314243 / 10 4831 4243Bowl Liner
HP5001048516296 Seat Liner
HP5001048723201 / 10 4872 3201Socket Liner
HP5001054915521 Piston
HP5001055981159 / 10 5598 1159Feed Plate
HP5001057605124 / 10 5760 5124Head Ball
HP5001057605167 / 10 5760 5167Lower Thrust Bearing,
HP5001057605168 / 10 5760 5168Upper Thrust Bearing
HP5001059238609 Sheave
HP5001059420079 Pump
HP5001061875592 Clamping Ring
HP5001061876294 Adjustment Ring
HP5001062440044 Drive Gear
HP5001063437875 Bowl Adapter Ring
HP5001063915668 Torch Ring
HP5001063917605 CounterWeight Liner
HP5001065634356 Piston Rod
HP500106663502 Mantle,Coarse (2),Std
HP500106663503 Mantle,Coarse (2),Std
HP5001066664501 Bowl Liner Coarse (1),Std
HP5001066664502 Bowl Liner Coarse (1),Std
HP5001066664503 Bowl Liner Extra Coarse (1),Std
HP5001066664504 Bowl Liner Extra Coarse (1),Std
HP7001001504357 Bshg, Outside Head, 2.000X1.500″Npt-Cl15
HP7001002668540 Shoulder Screw, Socket Head M20 X 6
HP7001020057055 Bowl Short Head, Thru-Bolt Design
HP7001022139576 Bushing For External Main Frame Pins,Pin Bushing
HP7001036831570 Bevel Gear Coniflexed Gear
HP7001048314310 / 10 4831 4310Bowl Liner Short Head Medium
HP7001048314345 / 10 4831 4345Bowl Liner Medium (For Standard Bowl Part #20055031)
HP7001048314349 / 10 4831 4349Bowl Liner Short Head Medium
HP7001048724021 / 10 4872 4021Socket Liner
HP7001050143800 / 10 5014 3800Mantle, Upper
HP7001050143829 / 10 5014 3829Mantle Short Head
HP7001050143833 / 10 5014 3833Mantle Short Head, Med & Coarse, S/B
HP7001050143842 / 10 5014 3842Mantle Short Head
HP7001054440226 Main Frame Pin
HP7001059428076 Pump Oil Pump W/Safety Relief Valve
HP7001061030442 Planetary Drive Ratio 117.27:1, P/N 130L
HP7001063192465 Piston Wear Ring 3" Od, 0.120"/0.125" T
HP7001079143403 Prssr Accumulator 5-15 Psi Preset Pr
HP7001093070190 Feed Plate Assy
HP7001093070195 Feed Plate Assy Hp700, Hp800, Wf800
HP7001093070298 Hydr Motor Assy Ratio 19.54:1
HP7004831-4318Bowl Liner Fine (For Sh Bowl Part #20057055)
HP7004831-4319Bowl Liner Medium (For Standard Bowl Part #20055030)
HP7004831-4320Bowl Liner Coarse (For Standard Bowl Part #20055030)
HP7004831-4344Bowl Liner Extra Coarse (For Standard Bowl Part #20055030)
HP7004831-4346Bowl Liner Fine (For Standard Bowl Part #20055031)
HP7004831-4347Bowl Liner Fine (For Sh Bowl Part #20057056)
HP7004831-4356Bowl Liner Coarse (For Standard Bowl Part #20055031)
HP7004831-4369Bowl Liner Extra Fine (For Sh Bowl Part #20057056)
HP7005014-3849Mantle Extra Fine,Fine,Medium,Coarse,Ec
HP700MM0203178Mantle Special Hp700 Sh M-Special, 086
HP700MM0203180Bowl Liner Sh Hd Medium Special
HP700MM0308988Coupling 1140T10
HP700MM0335582Mantle Special Hp700 Sh M-Special, 086
HP700MM0341717Mantle Sh Hd Fine
HP700MM0341718Bowl Liner Sh Hd Fine
HP8001001504357 Bshg, Outside Head, 2.000X1.500″Npt-Cl15
HP80000-615-142-474Hexagon socket Head Cap Screws0.375"-16Unrc-3Ax2.000"-Asmeb18.3- Astma574-Unpltd
HP8001000106047 Beam,W8X13.0Lb/Ft-Astma6- Astma36(Uns K02600), Hot Rlld
HP8001000154120 Sheets,10 Ga, Astma1011 / A1011M, Hr, Comm Grade, Low C
HP8001000154120 Sheets,10 Ga, Astma1011 / A1011M, Hr, Comm Grade, Low C
HP8001000154120 Sheets,10 Ga, Astma1011 / A1011M, Hr, Comm Grade, Low C
HP8001000154120 Sheets,10 Ga, Astma1011 / A1011M, Hr, Comm Grade, Low C
HP8001000154120 Sheets,10 Ga, Astma1011 / A1011M, Hr, Comm Grade, Low C
HP8001000154120 Sheets,10 Ga, Astma1011 / A1011M, Hr, Comm Grade, Low C
HP8001000154120 Sheets,10 Ga, Astma1011 / A1011M, Hr, Comm Grade, Low C
HP8001000154120 Sheets,10 Ga, Astma1011 / A1011M, Hr, Comm Grade, Low C
HP8001000154120 Sheets,10 Ga, Astma1011 / A1011M, Hr, Comm Grade, Low C
HP8001000159205 Plate, Steel,1.750" X Misc X Misc, Astm A36, Uns K02600,Hr
HP8001000160010 Plate, Steel,0.1875"-Astma6-Astma36, Hr
HP8001000160065 Plate, Steel,0.375"-Astma6-Astma36, Hr
HP8001000240078 Round Bar,4.000"Dia Xmisc, Aisi 4140-42,Trnd Grnd&Plsh,Rycrome Or Equiv
HP8001000502055 Pipe,1 1/2"-Sch40-Astma53-Gr B-Type S- Black, Plain Ends
HP8001000830667 Bronze,Astm B30, B584, Uns C93800, Grade
HP8001000841310 Ni-Hard Cast Iron,Astma532-Cl 1A, Modif., Ni-Hard Type N, White Iron
HP8001000860028 Cast Steel,.25 -.35%, C Gr 100-80, Unalloyed,
HP8001000897360 Round Bar,M215 Dia X Misc, Ductile Iron, Solid 65-45-12
HP8001000915583 Flat Bar, Steel,60X120Mm-Astma29M-Astma575M- M1020, Hr
HP8001000932181 Round Bar, Steel,M170-Astma6M-Aisi1018-20, Hot Rolled, Sbq
HP8001000932195 Round Bar, Steel,M360-Astma6-Aisi1018/20, Hot Rolled, Spc Q
HP8001000944375 Round Bar, Steel,110Mm-Astma6M-Aisi4340, Hr, Annealed
HP8001000960002 Plate, Steel,5Mm-Astma6M-Astma36M, Hr
HP8001000960060 Plate, Steel,20Mm-Astma6M-Astma36(Uns K02600), Hot Rolled
HP8001000960060 Plate, Steel,20Mm-Astma6M-Astma36(Uns K02600), Hot Rolled
HP8001000960060 Plate, Steel,20Mm-Astma6M-Astma36(Uns K02600), Hot Rolled
HP8001000960070 Plate, Steel,25Mm-Astma6M-Astma36M, Hr
HP8001000960070 Plate, Steel,25Mm-Astma6M-Astma36M, Hr
HP8001000960070 Plate, Steel,25Mm-Astma6M-Astma36M, Hr
HP8001000960070 Plate, Steel,25Mm-Astma6M-Astma36M, Hr
HP8001000960070 Plate, Steel,25Mm-Astma6M-Astma36M, Hr
HP8001000960080 Plate, Steel,30Mm-Astma6M-Astma36M, Hr
HP8001000960080 Plate, Steel,30Mm-Astma6M-Astma36M, Hr
HP8001000960120 Plate, Steel,60Mm-Astma6M-Astma36(Uns K02600), Hr
HP8001000960130 Plate, Steel,80Mm-Astma6M-Astma36(Uns K02600), Hr
HP8001000960130 Plate, Steel,80Mm-Astma6M-Astma36(Uns K02600), Hr
HP8001000960130 Plate, Steel,80Mm-Astma6M-Astma36(Uns K02600), Hr
HP8001000964760 Plate, Steel,140Mm-Astma6M-Aisi4340, Hr, Annealed
HP8001000965050 Wear Resistant Steel Plate,16Mm-Astma6M-Ar400
HP8001000965050 Wear Resistant Steel Plate,16Mm-Astma6M-Ar400

Why Choose PAJOA for Metso HP Cone Replacement Crusher Parts?

When sourcing replacement parts for Metso cone crushers, buyers not only look for compatibility but also a reliable partner who can guarantee performance, certification, and timely delivery. At PAJOA, we combine global standards with local expertise to deliver parts that fit, perform, and last.
ISO / ASTM / EN / JIS Certified

Manufacturing aligned with international and national quality standards.

10+ Leading Foundries in China

Direct access to China’s top crusher parts factories for quality and supply reliability.

Up to 14 Tons, 1.5× Wear Life

Custom-engineered parts for extreme durability and high-volume needs.

One Supplier. One Container.

All crusher types, all major brands — spares and wears in one-stop sourcing convenience.

Get in touch

Bulk Buying? All Your Metso Crusher Replacement Parts — One Supplier, One Shipment.

Contact Us

FAQs about Metso Cone Crusher Parts Alternatives from Pajoa

Q: Do you supply genuine Metso parts?

A: No, we manufacture high-quality replacement parts compatible with Metso crushers.

We are not affiliated with Metso in any commercial way. Our components are engineered to match the dimensions and performance of original Metso parts.



Q: Are your cone crusher parts compatible with Metso HP/GP/MP models?

A: Yes, all parts are engineered for direct fit with Metso crushers, with optional material upgrades available.

Q: Can you help identify a specific part for my Metso model?

A: Absolutely. Please share your part number, drawing, or photo, and our technical team will assist you promptly. Additionally, we provide guidance for customers to define the parts they wish to purchase accurately.

Contact Us

We don’t Just Sell Crusher Parts. We Help You Get the Right Ones.

Tell us what you need — exact match or not — and we’ll take care of the rest.
+8618038746871

Headquarters:
Creating Center, No.142, Yuhe Road, Lecong Town, Shunde District, Foshan City, Guangdong Province, China. 528300

Australia Local Support Base:  Yatala, QLD– Coming 2026


    pajoa crusher parts
    Newsletter

      Crusher Replacement Parts SolutionCustom Ultar Wear Parts Service
      Visit our FacebookVisit our InstagramVisit our Twitter
      All brand names and model numbers are used for reference only. Pajoa is not affiliated with the OEM. Our parts are independently manufactured for aftermarket use.
      [email protected]
      +8618038746871
      +8618038746871

      Address:
      Headquarters: Creating Center, No.142 Yuhe Road, Lecong Town, Shunde District, Foshan City, Guangdong Province, China. 528315

      Australia Local Support Base: Yatala, QLD– Coming 2026

      0

      Language

      enesptrude

      Language

      0
        0
        Your Cart
        Your cart is emptyReturn to Shop
        Continue Shopping
        linkedin facebook pinterest youtube rss twitter instagram facebook-blank rss-blank linkedin-blank pinterest youtube twitter instagram
